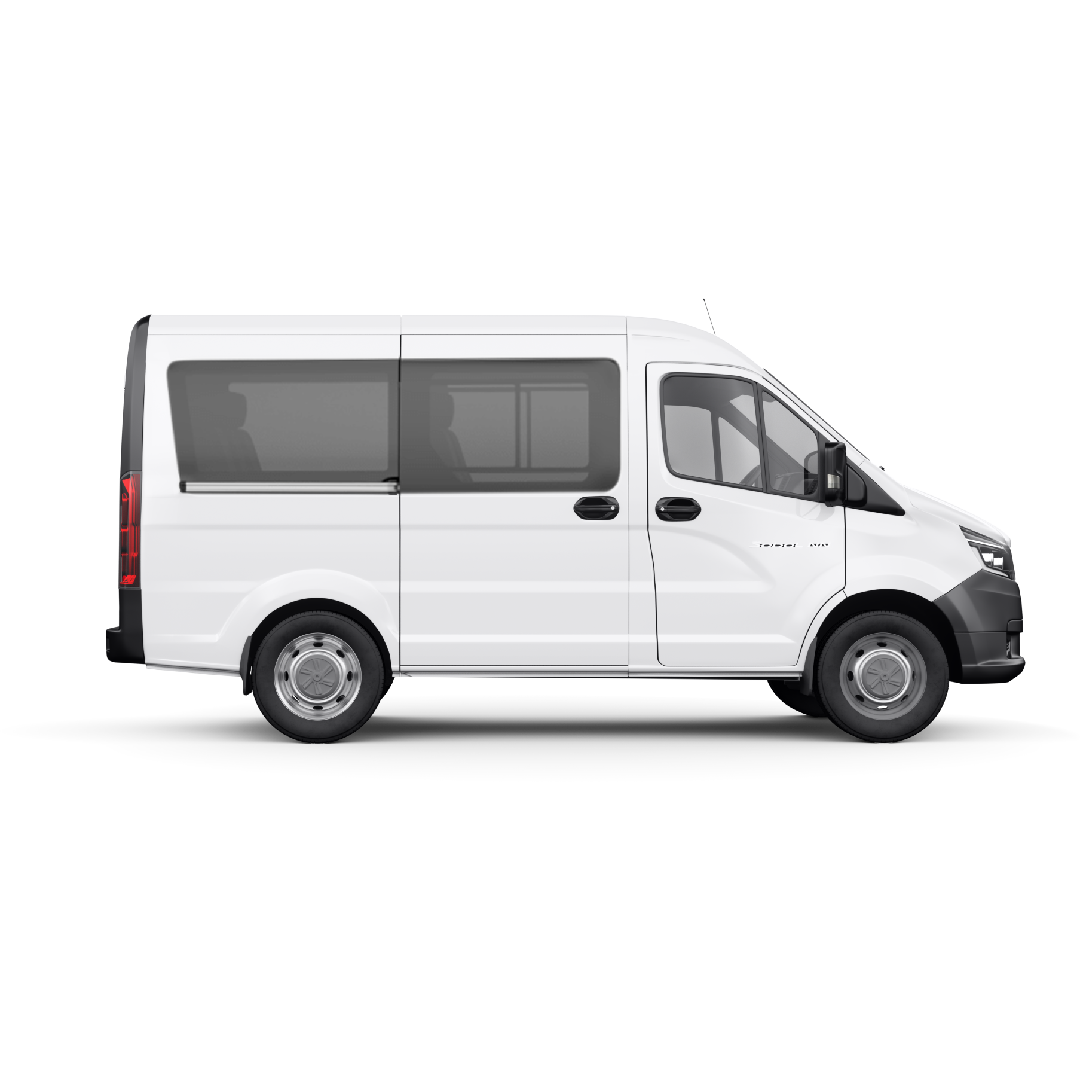

SOBOL NN MINIBUS 11 SEATS
TEST DRIVE
SOBOL NN 11-SEATER - COMPACT, REFINED, AND VERSATILE
The Sobol NN 11-seater serves as the ideal minibus for modern urban environments and high-density areas. Featuring optimized dimensions, the Sobol NN maneuvers effortlessly through narrow streets, offering an efficient solution for rapid and safe passenger transfers, whether for customers, corporate staff, or students.
- EXTERIOR
- INTERIOR
- CHASSIS
- SPECIFICATIONS
EXTERIOR
The Sobol NN minibus features dimensions optimized for narrow urban environments. Its compact footprint allows for easy access to narrow roads while maintaining ample interior space to accommodate 11 passengers comfortably.
The vehicle maintains an ideal balance in gross weight, ensuring precise handling without compromising stability or load-carrying capacity. This engineering balance maximizes operational efficiency and fuel economy.
INTERIOR
The Sobol NN 11-seater is a compact minibus tailored for shuttle and transit needs. The vehicle is equipped with an independent dual-zone air conditioning system, ensuring effective cooling for both the front and rear compartments.
Additionally, it integrates an entertainment system, power windows, and seats equipped with individual USB charging ports, delivering maximum convenience and comfort for passengers.
CHASSIS
SUPERIOR PERFORMANCE AND SAFETY
The vehicle structure consists of 80% high-grade steel. The entire body frame utilizes high-alloy steel designed in a closed-section structure to enhance rigidity, stability, and safety. The chassis features a reinforced overlapping design that delivers optimal impact energy absorption, maximizing safety.
| PARAMETERS | UNIT | DETAIL |
|---|---|---|
| DIMENSIONS | ||
| EXTERIOR DIMENSIONS (LxWxH) | mm | 5110 х 2068 х 2430 |
| Track – Front/Rear | mm | 1750 / 1750 |
| Wheelbase | mm | 3005 |
| Ground clearance | mm | 160 |
| WEIGHT | ||
| Curb weight | kg | 2500 |
| Gross weight | kg | 3215 |
| Capacity | seats | 11 |
| ENGINE | ||
| Engine code | Cummins ISF2.8s5161P, Euro V | |
| Engine type | Diesel, 4-stroke, 4 in-line cylinders, turbocharged, intercooled, electronically controlled fuel injection | |
| Displacement | cc | 2776 |
| Max power | Ps/rpm | 150 / 3400 |
| Max torque | N.m/rpm | 320 / 1400-2700 |
| TRANSMISSION | ||
| Clutch | Single plate, dry friction, hydraulically operated | |
| Transmission | Manual, 5 forward gears, 1 reverse gear | |
| Gear ratio | ih1=3,786; ih2=2,188; ih3=1,304; ih4=1,000; ih5=0,794; iR=3,280 | |
| Main gear ratio | 4,3 | |
| STEERING SYSTEM & BRAKING SYSTEM | ||
| Steering system | Rack and Pinion, Hydraulic Power Assisted Steering | |
| Braking system | Vacuum Assisted Hydraulic Brakes, Disc Brakes, Equipped with ABS and EBD | |
| SUSPENSION SYSTEM | ||
| Front | Independent, Coil Spring, Hydraulic Shock Absorber, Stabilizer bar | |
| Rear | Dependent, Leaf Spring, Hydraulic Shock Absorber, Stabilizer bar | |
| Tires | Front/rear | 185/75R16C/ Dual 185/75R16C |
| CHARACTERISTIC | ||
| Gradeability | % | 26 |
| Minimum Turning Radius | m | 5,4 |
| Maximum Speed | km/h | 130 |
| Fuel Tank Capacity | liter | 80 |
| STANDARD EQUIPMENT | ||
| Entertainment system | 2 DIN Android unit | |
| Rear-view mirrors | Electrically Adjustable and Heated | |
| Cruise Control System | Standard equipment | |
| Passenger Seats | Premium leather upholstery, adjustable backrest, USB charging for each seat | |
| Air Conditioning | Equipped with 02 independent air conditioners | |
3745 mm
Diesel
3500 kg
4x2
